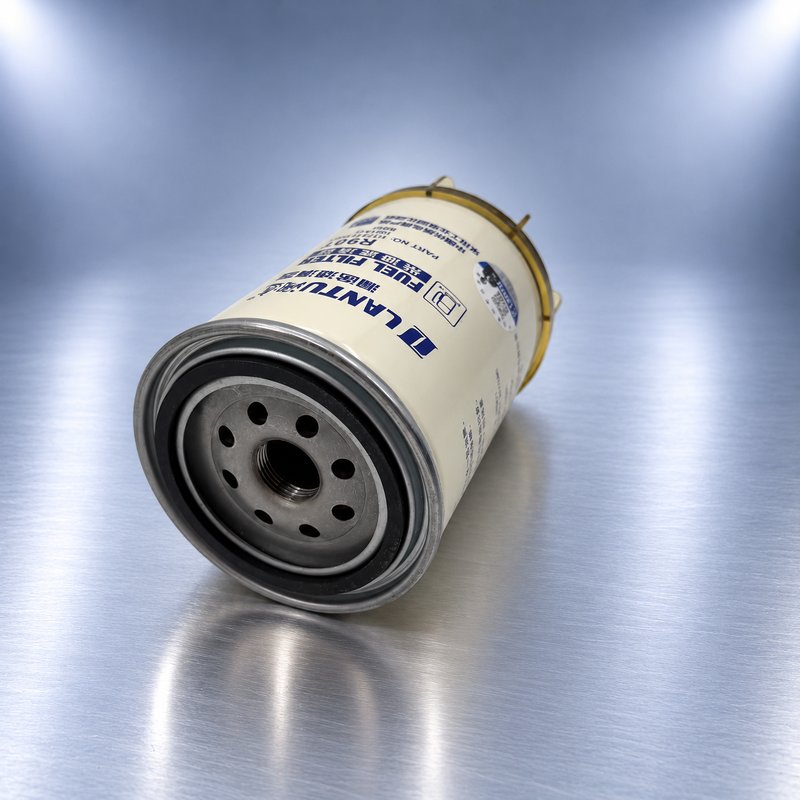

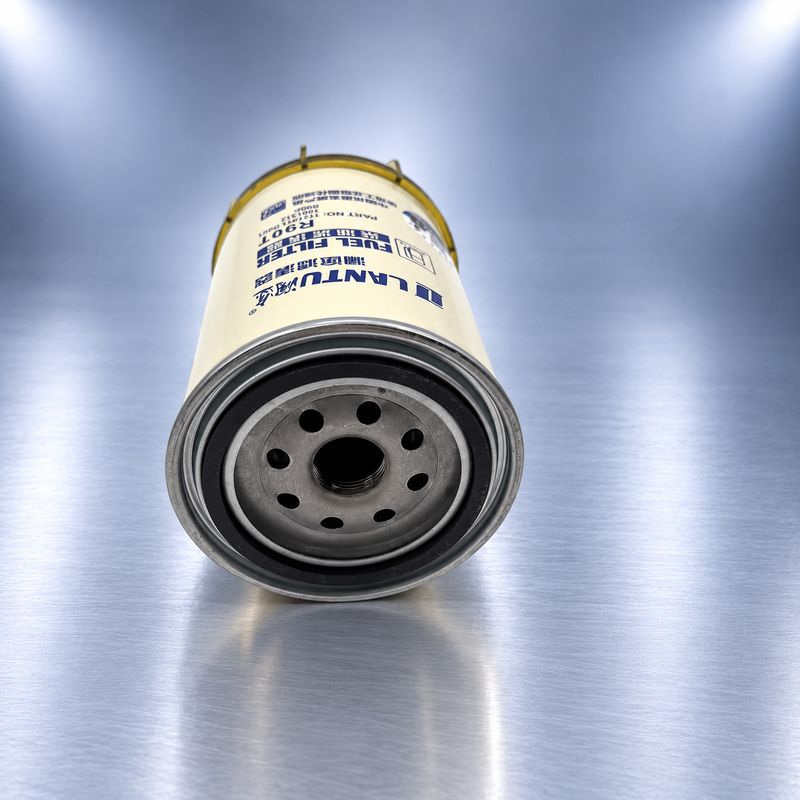

Lantu R90T Fuel Filter Water Separator 1001312 FS19551 Cum mins & Foton Aumark

Ringkasan Produk

The LANTU R90T Fuel Filter is a spin-on diesel fuel filter and water separator designed for compatible commercial vehicles and diesel engine fuel systems. The LANTU R90T Fuel Filter is a spin-on diesel fuel filter and water separator designed for compatible commercial vehicles and diesel engine fuel systems.

The supplied product is marked with three part numbers: R90T, 1001312, and 1117211-P301.although compatibility must be verified against the original filter specifications (meskipun kompatibilitas harus diverifikasi terhadap spesifikasi filter asli).

The R90T reference group is associated with selected Cum mins diesel engines and Foton Aumark commercial vehicles.Related R90P filter references are also included below to help buyers distinguish between different product configurations (referensi filter R90P yang terkait juga termasuk di bawah ini untuk membantu pembeli membedakan antara konfigurasi produk yang berbeda).

LANTU menyediakan produk filtrasi aftermarket untuk pedagang grosir suku cadang kendaraan komersial, distributor suku cadang mesin diesel, dan pembeli besar internasional.

Spesifikasi Teknis

Note: These dimensions are based on the supplied R90T reference information and refer to the filter element rather than the complete assembly with bowl. Catatan: These dimensions are based on the supplied R90T reference information and refer to the filter element rather than the complete assembly with bowl.Satu lagi katalog daftar diameter nominal 110 mm.Dimensi produk akhir dan konfigurasi mangkuk harus dikonfirmasi sebelum memesan.

Fuel Filter Cross Reference

The following part numbers are listed in the available R90T catalog reference information.

Cross Reference Notice: These numbers are provided for identification and reference purposes. They do not guarantee direct interchangeability. Pembeli harus mengkonfirmasi dimensi, ukuran benang, dan ukuran.Konfigurasi pemisah air, dan vehicle compatibility before replacement.

R90T dan R90P Filter Specifications Comparison

The supplied product catalog also includes a related R90P / 1117211-P301 filter group.

Meskipun beberapa part number terkait dengan keluarga produk yang sama, spesifikasi fisik mereka mungkin berbeda.

The primary R90T technical specification is listed as 108 mm in outer diameter based on the supplied reference data, while the catalog comparison uses the nominal 110 mm diameter.

Related R90P / 1117211-P301 Cross References

Important: The 1117211-P301 number is printed on the supplied product, but the catalog also associates this number with a longer R90P-related filter.Nomor bagian cetak saja tidak boleh digunakan untuk menentukan interchangeability..

Aplikasi Kendaraan dan Mesin

Informasi berikut didasarkan pada referensi katalog produk yang tersedia.

Application Note: Vehicle compatibility depends on the installed fuel filter assembly. Pelanggan harus verify the original filter number and relevant equipment specifications before purchasing.

How to Choose the Correct Replacement Fuel Filter (Bagaimana Memilih Filter Bahan Bakar yang Tepat)

Memilih penggantian yang benar membutuhkan memeriksa nomor bagian dan spesifikasi fisik.

Sebelum memesan, mohon konfirmasi:

1. Original Part Number: Check R90T, 1001312, FS19551, 1117211-P301, atau other relevant markings.

2. Filter Dimensions: Compare the outer diameter and overall filter height with the existing part. Bandingkan diameter luar dan ketinggian filter secara keseluruhan dengan bagian yang ada.

3. Thread Connection: Konfirmasi ukuran thread dan mounting compatibility.

4. Water Separator Configuration: Verify whether a separate water collection bowl is required and whether its connection is compatible. Mengverifikasi apakah sebuah mangkuk pengumpulan air terpisah diperlukan dan apakah sambungannya kompatibel.

5. Vehicle or Engine Application: Berikan model kendaraan, model mesin, atau informasi filter assembly yang ada.

Pelanggan juga dapat mengirim foto filter mereka ke LANTU untuk identifikasi dan review kompatibilitas.

Wholesale Fuel Filter Supply

Hebei LANTU Technology Co., Ltd. memproduksi dan memasok produk filtrasi aftermarket untuk pasar grosir internasional.

Our product range serves commercial vehicle spare parts distributors, diesel engine maintenance suppliers, automotive aftermarket wholesalers, and industrial filtration importers. produk kami melayani distributor suku cadang kendaraan komersial, pemasok pemeliharaan mesin diesel, pedagang grosir aftermarket otomotif, dan importir filtrasi industri.

For bulk purchasing inquiries, please provide: Untuk pertanyaan pembelian massal, silahkan berikan:

• Required part numbers and specifications (jumlah dan spesifikasi bagian yang dibutuhkan)

• Jumlah pesanan

• Aplikasi kendaraan atau mesin

• Packaging atau private-label requirements

• Negara atau pelabuhan tujuan

Our team can review the available specifications and purchasing requirements before preparing a quotation. Tim kami dapat meninjau spesifikasi dan persyaratan pembelian yang tersedia sebelum menyiapkan penawaran.

Pertanyaan yang Sering Diajukan (FAQ)

Q1: What is the R90T Fuel Filter used for?

The R90T is a diesel fuel filter and water separator reference used in compatible commercial vehicle and diesel engine fuel systems. Ini membantu menghilangkan kontaminan dan memisahkan air dari bahan bakar diesel.

Q2: What are the dimensions of the R90T filter?

The supplied R90T reference specifies an outer diameter of 108 mm, a height of 156 mm, and a 1"-14 UNS thread.Ukuran produk sebenarnya harus diverifikasi sebelum memesan..

Q3: Apakah R90T dan 1117211-P301 bisa ditukar?

Kedua nomor muncul pada label produk yang disediakan, tetapi katalog yang tersedia juga mengidentifikasi 1117211-P301 dengan filter terkait R90P yang mengukur Ø114 × 230.5 mm.Compatibility harus diperiksa secara individual.

Q4: Bisakah R90T mengganti Fleetguard FS19551?

FS19551 is included in the R90T cross-reference information. Pelanggan should confirm the existing filter dimensions, thread connection, and assembly requirements before replacement.

Q5: What vehicles are associated with these filter references? (Kendaraan apa yang terkait dengan referensi filter ini?)

The R90T reference group includes selected Cum mins and Foton Aumark applications. The R90P / 1117211-P301 group includes catalog applications such as Foton Ollin, Dongfeng Bus, and Qingling 700P.

T6: Apakah filter termasuk mangkuk pengumpulan air?

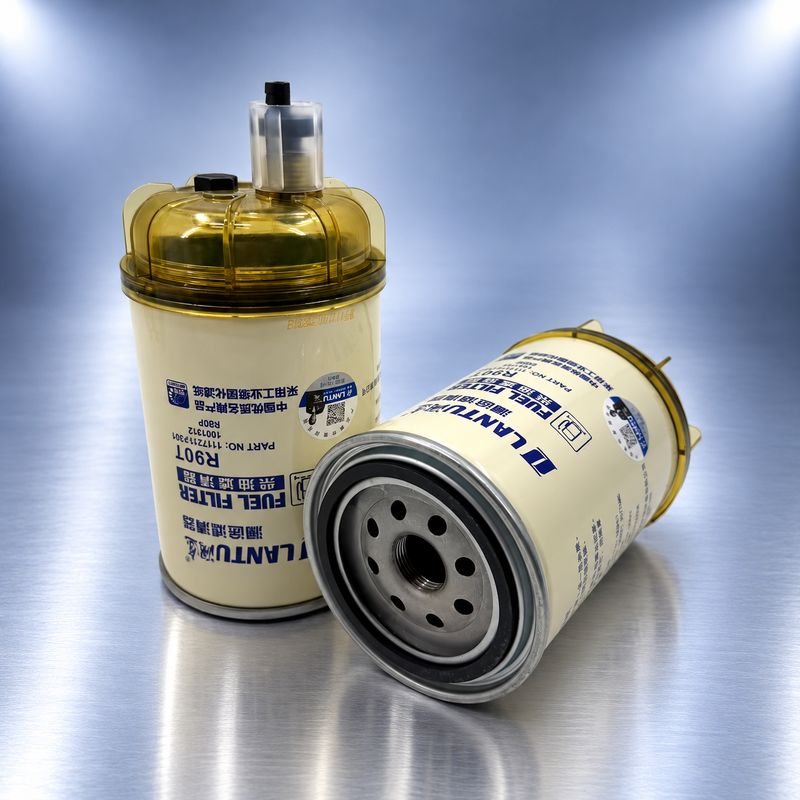

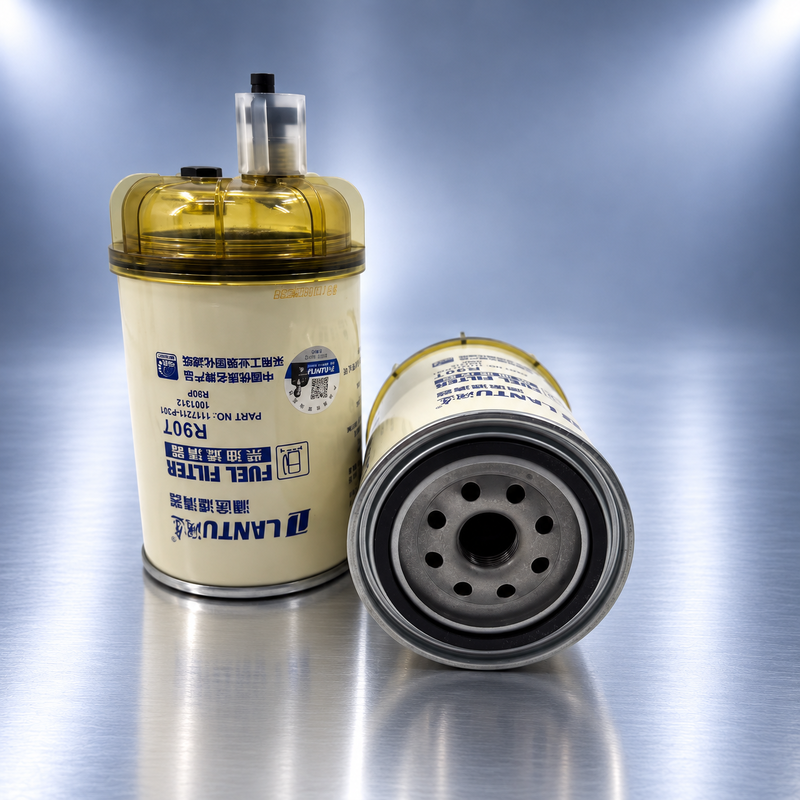

The supplied LANTU product photo shows a transparent water collection bowl. Please confirm the required assembly and supply configuration when requesting a quotation (Silakan konfirmasi assembly dan konfigurasi pasokan yang diperlukan saat meminta penawaran).

Q7: Apakah LANTU supply diesel filters in bulk?

Yes. LANTU supplies aftermarket filtration products to wholesale customers and international distributors. Please contact us with your required part numbers, quantities, and specifications. Silakan hubungi kami dengan nomor bagian, kuantitas, dan spesifikasi yang Anda butuhkan.
